1986-2002 Ford Ranger Fuel Cell

Un welded diy Kit. You weld it yourself. You'll need to know hour to tig weld.

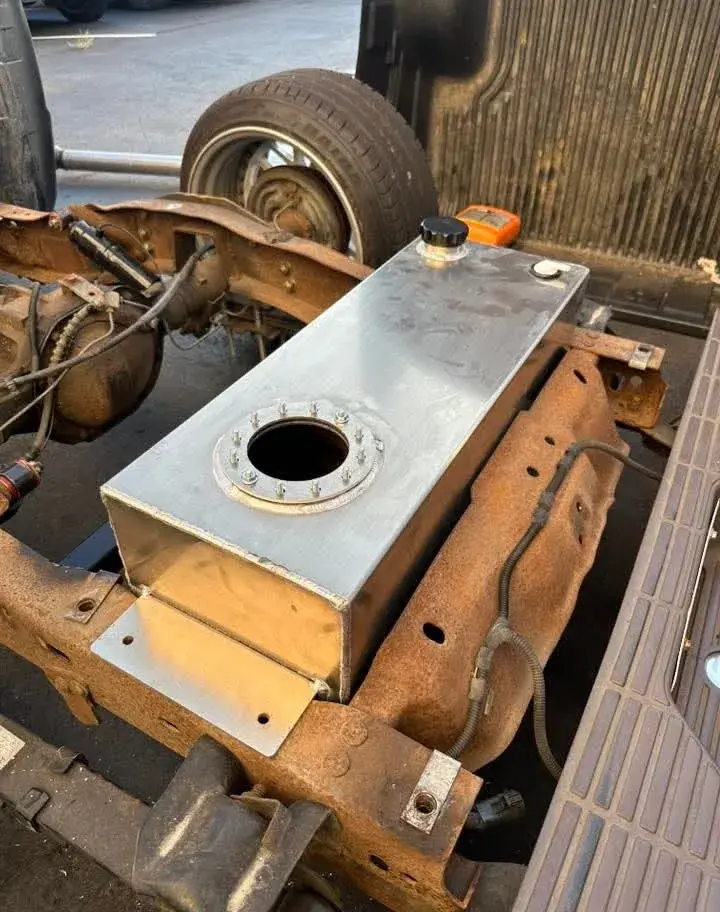

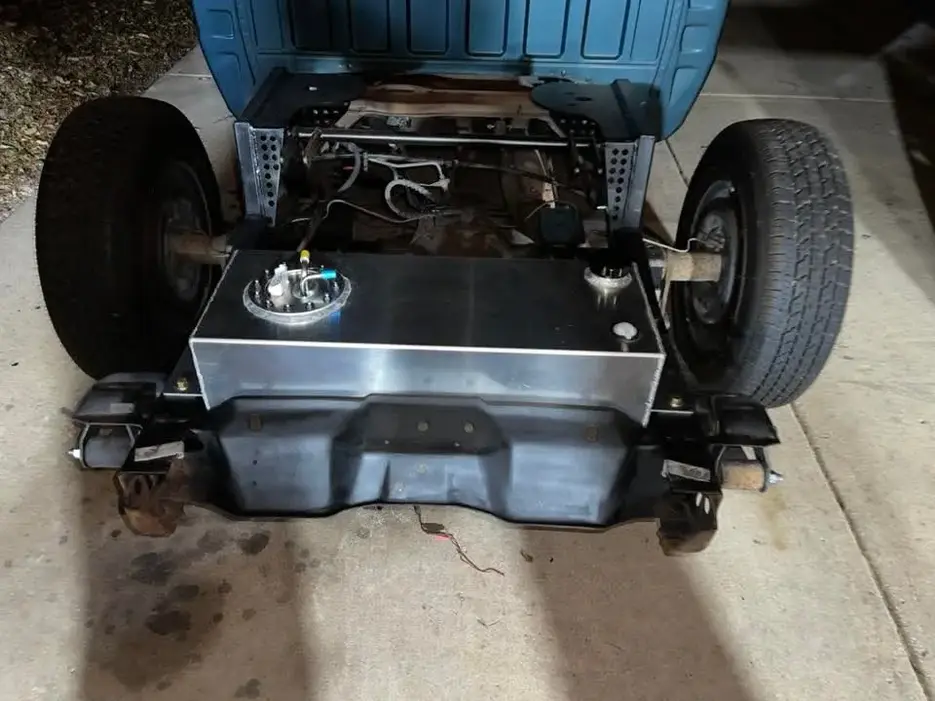

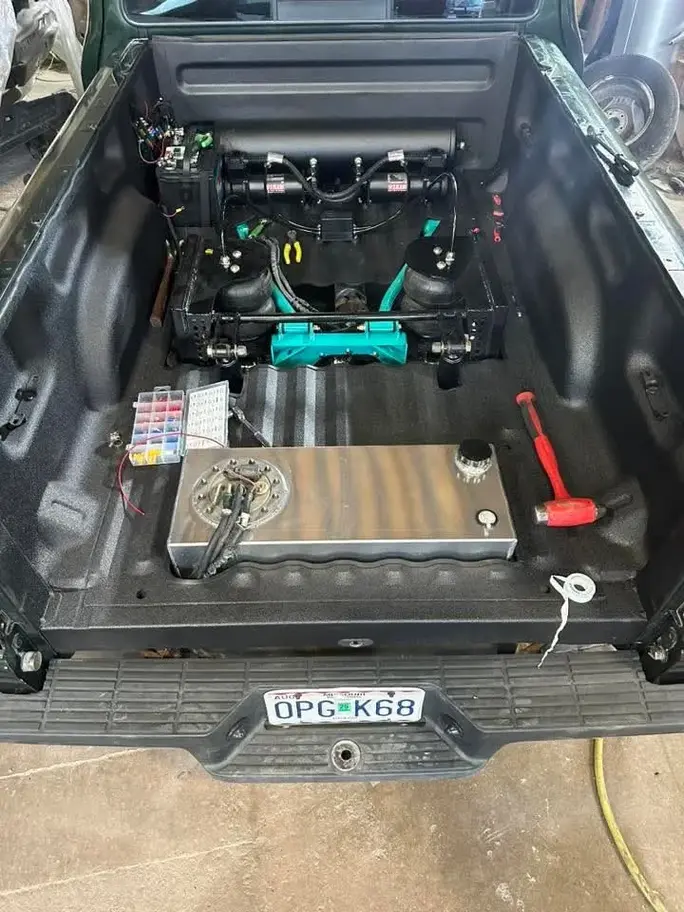

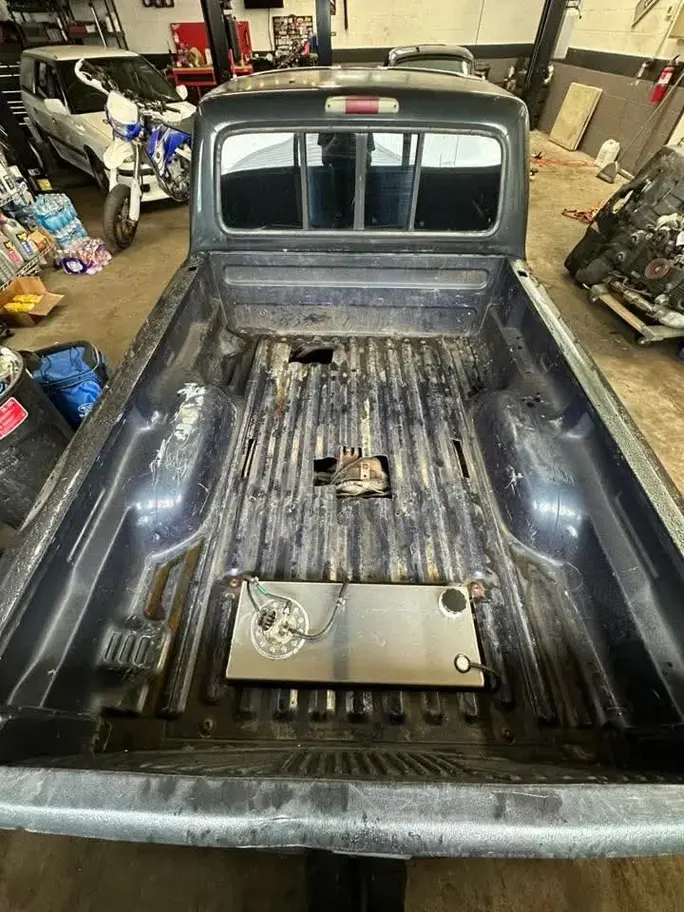

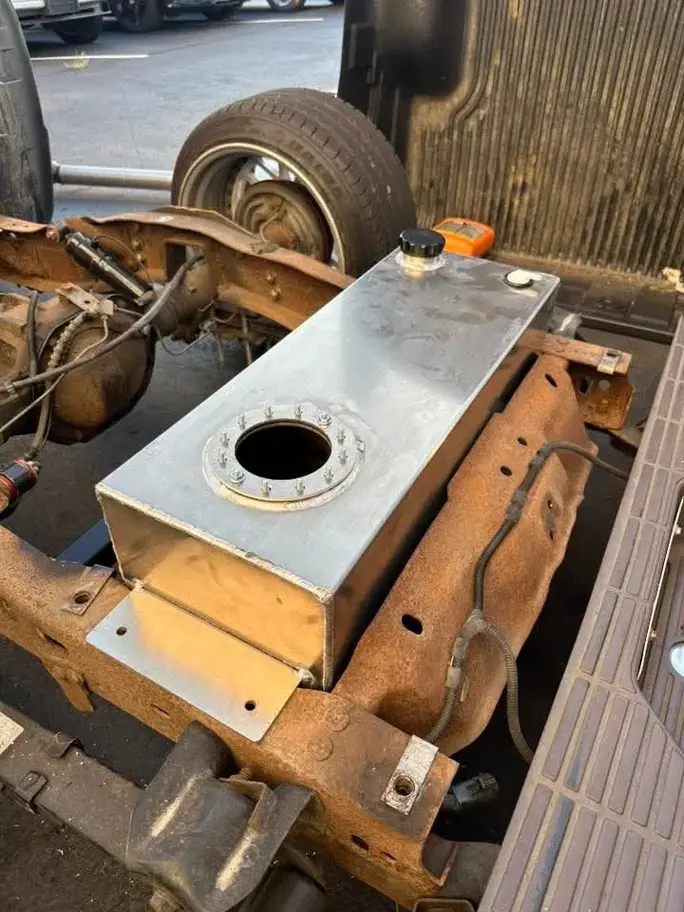

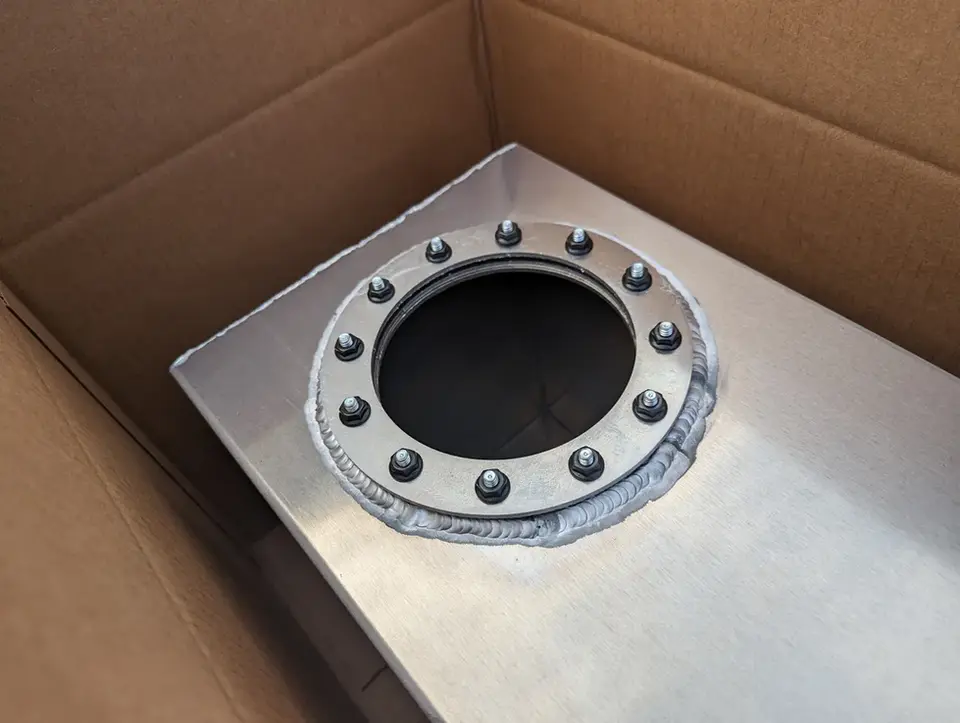

Expect a 2-3 week lead time on these. These are not a stocked item unfortunately Aluminum Fuel Cell For 1986-2003 Ford Ranger. 13 gallon Fully Tig Welded ready to drop in using your factory sending unit!! Simply extend fuel lines and wires and its ready to go!!! Mounts in between frame rails in the rear of truck Tank will stick thru bed floor about 2.5" (Designed to not hang low like the factory tank does). You will need to cut rectangle shape into the bed in order to re mount your truck box. Extending the fuel lines requires a few brass barbs, hose clamps and fuel line from your local parts store. Very simple process. .125 Aluminum, Billet Aluminum gas cap Factory tank Breather included. Accepts Factory Sending Unit ( Choose between 1986-1997 OR 1998-2002) Includes O-ring seal for factory sending unit ***Please note that there may be light surface scratches. We use protective paper throughout the fabrication process. Handled w/care to minimize the potential for surface scratches***

You must weld it yourself. Comes un welded together. Prints will show how to weld.
